Cartridge Case Annealing with the BC-1000 Annealer
When, Why, How and If to Anneal

By Ken Light

Read This First

Don't even think about starting this machine until you read and understand these instructions.
It is also helpful if you read and understand "How to Anneal"

  1. Select the wheel that fits the cases you will be doing. push the spring loaded motor slightly to the side to lift off and install the wheel.
  2. For best results the cases should be clean and polished. Deprime the cases so they will rotate in the wheel properly and prevent wearing out the abrasive under the wheel
  3. Set 2 cases in the wheel and lay a straight edge on the mouths and align the bottom of the straight edge with the top of the torch tips by loosening the torch holder set screws slightly and turning the hex nuts at the bottom of the torch holders. The torches should stick out of the torch holders 3/8". Use the Bernzomatic torch UL 2317. They come in kit #UL 100. This kit also contains a canister of gas.
  4. With the spare cases in the wheel, light the torches, turn the machine on and let the cases run through the flames. Align the flames so that the cases make at least 1 revolution thru the flames of both torches. The torch holders have alignment flats milled on the sides which should be close. If you have to move the flames, loosen the set screws and move the torch holder slightly to get the case to stay in the flames for 1 revolution.
  5. Turn off the torches and machine and remove the wheel to preheat it under a hot water stream. Reinstall the wheel and put 1/2" of hot water in the 1" thick wheels and 1/4" of hot water in the 1/2" thick wheels. Don't operate without water in the wheel.
  6. Relight the torches, start the machine with the torches turned down and start loading cases in the wheel. Adjust the flames so that when the cases fall into a dry pan, the necks are gold with a slight blue ring forming below the neck.


Annealing is a process wherein heat is applied to a metal in order to change it's internal structure in such a way that the metal will become softer.

Most of us think of "heat treating" when we think of applying heat to a metal in order to change it's internal structural properties. The word "heat treating" is most commonly associated with steel. However, the term heat treating is not annealing, except in a general and journalistic sense of the word. Heat treating refers to a process wherein the metal is made harder. Annealing always means to make the metal softer.

In order to make steel harder, it is heated to some temperature, and then cooled fairly rapidly, although this is not always the case. Brass, on the other hand, cannot be made harder by heating it -- ever -- brass is always made softer by heating.

The only way brass can be made harder is to "work" it. That is, the brass must be bent, hammered, shaped or otherwise formed. Once it has been made hard, it can be returned to it's "soft" state by annealing. The hardness of brass can be controlled by annealing for a specified time and temperature.

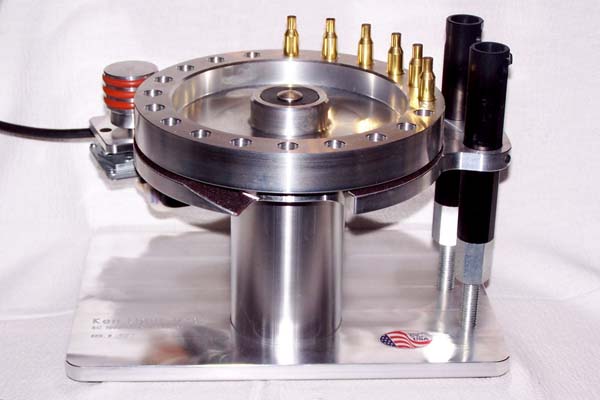

BC 1000 Annealer

BC 1000 Annealer
From The After Market Sight Specialist: Ken Light Mfg.
PO Box 2745, Lake Havasu City, Arizona 86405
Phone# 1-800-790-3184
Fax# 928-855-8558
See Ken Light Mfg. web site for all products

Unlike steel, which will be made harder when it is cooled rapidly, brass is virtually unaffected when it is rapidly cooled. Annealing brass and suddenly quenching it in water will have no measurable effect on the brass. Cartridge cases are made of brass. When cartridge cases have been reloaded a number of times, the case necks become harder. Annealing will return the cartridge case necks to their factory original state.

Cartridge Case Annealing

"Properly" annealed cartridge cases are essential to maintaining accuracy and long case life when using handloaded ammunition. The question is, what is "properly" annealed? What does annealing do? Can a cartridge case be over annealed? What part of the case should be annealed? Can annealing a cartridge case make it dangerous? Below, you will find the answers to these questions, as well as a number of other questions that you didn't ask.

A great deal has been written about cartridge case annealing in the popular gun press. A great deal of what has been written about annealing is misleading, with one exception: articles and books by Dean A. Grennell. In his "The ABC's of Reloading" (page 190), Mr. Grennell correctly describes the procedure. Although it is a very short description, it is correct. There is one slight error of fact, but it is on the side of safety and Mr. Grennell cannot be faulted for this in any way. In fact, if you do not have this book I recommend it -- even for "experienced" handloaders. There is much valuable information in it, much of it overlooked in other publications. The photo's are profuse and excellent, the explanation clear and concise, and the writing is witty and wry.

After wading through this weighty tome, you will know more about annealing and cartridge brass than you probably bargained for.

Few handloaders ever bother to anneal their brass. The few that do are usually dyed-in-the-wool "gun cranks" (to use a rather archaic term from the 1940's), "crazy experimenters" or shooters who are involved in some form of competitive shooting. There is good reason for this, too -- until now, annealing cartridge brass was, at best, a spotty proposition. The brass is either over annealed, under annealed, improperly annealed or some combination of all three. Annealing brass is time consuming, and for the most part, the damn stuff doesn't seem to shoot any better than before it was annealed. Sure, the brass lasts longer, but it does not seem to make any improvements in accuracy. If anything, it might seem to open up groups. So much for the way you used to think about annealing.

Now let's find out about doing it right. Not only will annealing make the brass last up to 10 times longer, but it will tighten up those groups too.

Before I go into the why's and whereof of cartridge brass and the right way to anneal, let's review the traditional methods of annealing, the attendant disaster, and how they occur.

The "Old Methods"

The usual procedure is to get a pan, something like a cookie pan, and place enough water water in the bottom of it to cover the lower one-third to one-half of the brass. Next the cartridges are stood on their bases in the water. A flame from a propane torch is played over the case necks until the brass "just begins to glow" or "just before it begins to glow". When the magic moment is reached, the annealing is abruptly arrested by knocking over the heated case into the water. The fact that the case neck is heated unevenly and the case-to-case heating is hardly uniform doesn't seem to get much notice.

The reason for the water is that the bases of the cases must not be annealed, or even heated to any appreciable amount, for reasons you will learn about later on.

Another method is to dip the case mouths into molten lead that is at the "correct temperature. Of coarse, there are the problems of lead sticking to the case (soldering), holding the case, and preventing the base from becoming over heated. This process is obviously one for Superman: he could hold the case with his fingers of steel and freeze the base by blowing his supersonic breath over it.

Quite frankly, I have never seen anyone use the lead pot method of annealing although I have read many articles describing it. I think I can see why it is not a popular method. The next method is described by Earl Naramore in his "Principles and Practices of Loading Ammunition" (circa 1954).

First the cases are polished and then placed on a small block of wood or metal. The case is placed on the platform and a flame from a suitable torch is played over the neck as the block is turned. This continues until the brass has a slight color change, and then the flame is removed. The flame must be hot enough so that the neck is heated sufficiently fast enough to prevent the base from heating to a critical point.

Needless to say, this procedure will work fairly well, but requires a high degree of skill. It is also very S-L-O-W! Can you imagine having to anneal several hundred cases using this method? Another drawback to this method is that you will have a decided lack of uniformity on the periphery of the case neck, and the case-to-case results will be even less uniform. So much for the "old methods".

Cartridge Cases

Our present day cartridge cases represent over one hundred years of continued development and refinement. Cartridge cases are manufactured to exacting standards and tolerances from brass made especially for the purpose.

A cartridge case starts life as a strip of brass. It goes through a number of processes on it's way from brass strip to finished cartridge case. It is punched, heated, cooled, cupped, washed, drawn, annealed, formed, "upset" and trimmed and polished, though not necessarily in that order, and I have left out a significant number of steps. Suffice it to say, the manufacture of cartridge brass is involved and exacting. What we get is truly a marvel of manufacturing magic.

Cartridge brass is annealed several times during the manufacturing process. Each step is carefully controlled, and the brass is tested and examined with sophisticated equipment.

As delivered, a cartridge case has a number of properties especially suited for the job it must perform. Most shooters think of the cartridge case merely as a convenient way of keeping the bullet, primer and powder from getting all mixed up and a handy way of stuffing them all into the gun in the proper sequence. As Rodney Dangerfield might say, "It don't get no respect".

The Cartridge Case Inside The Gun

Actually, a cartridge case is the primary component with which we have to deal in handloading ! Not only that, but it is the cartridge case which seals the chamber when the gun is fired. If it weren't for the amazing ability properties of the cartridge case, you would get a hot blast of gas in your face every time you pulled the trigger.

After the trigger is pulled, the powder is ignited and creates gas pressure inside the case. Under pressure, the case expands. The outer walls of the cartridge case press against the walls of the chamber. As the pressure builds up (as high as 55,000 pounds per square inch or more in a rifle), the outer walls of the case press tighter and tighter. The more pressure, the better the seal (up to a point, of coarse). The primer, held securely at it's outer walls by the same pressure, and pressing against the bolt face (assuming we're still talking about a rifle), does it's part to seal the breach, even though it's primary job is completed by this time.

As the bullet speeds down the bore, the pressure begins to drop. Finally, the bullet clears the muzzle and the pressure abruptly drops to zero (in fact, to atmospheric pressure). The cartridge case, having done it's job to seal the chamber, has more "work" to do. It must spring away from the chamber walls so it may be extracted. If it does not, it will be a bi___ to remove from the gun. If it fails to spring back from the chamber walls sufficiently, it will seem to be a little "sticky". If it does not spring back at all, it will take the hot hammers of hell to remove it.

In order for the cartridge case to perform it's tricky tasks again and again, it must have it's properties restored from time to time. One of these properties is it's physical dimensions. These are restored each time the case is resized. When a cartridge case is full-length resized, every dimension except the overall case length is restored. Principally, the diameters of the case and the case's shoulder are restored.

Sometimes only the case neck is resized to original factory dimensions. This is due to the fact the cartridge brass has a certain resiliency and is able to spring back to a size which approximates it's original size. It will still fit into the chamber of the gun it was fired in, but it may not fit in another gun, which to all intents and purposes is "identical" in every respect, except that it's chamber may be slightly smaller. As long as the cartridges are used in the same gun after each neck sizing, no trouble will be encountered. Ammunition loaded from brass which has been neck sized only, may group appreciably tighter. I say may, because there are so many variables that only you can determine which is the best combination of components, processes and techniques for your gun.

Each time the case is fired and reloaded, changes occur in it's structure. Except for the obvious changes in dimensions, these changes are not discernable to the "naked-eye". The important changes occur at the molecular level in the brass itself.

Properties of Cartridge Cases

A finished cartridge case is made so that the hardness of the metal varies over it's length. It must be "hard" in some places and "soft" in others. In order to make brass hard, it must be "worked" or, in a crude sense, "hammered".

Most metals "work harden" as they are formed, and brass is no different. The term "work" means that the fine granular structure of the metal is placed under stress and changes as a result of forming or shaping. These stresses remain in the metal in the form of changes to it's grain structure. (This is somewhat oversimplified, but is accurate as far as it goes).

The metallic "grains" can actually be seen if the brass is etched in an acid solution and examined under a microscope with the proper lighting conditions -- obviously a laboratory job, and not a subject which I will take up here. When the grains become too fine, the metal will easily crack. However, there are ways to discern the general condition of the metals structure without a laboratory examination.

The cartridge case, as it comes from the factory, is not one single hardness over it's entire length. The neck, which must hold the bullet in place with sufficient holding power to prevent it's setback while undergoing recoil (as it is stored in a magazine or clip), is somewhat "soft" compared to the head of the case.

By "soft" I do not mean to imply that it is like "dough" or soft like an aluminum beer can. It is "soft" only in comparison to the head of the case. On the other hand, the head of the case is not "hard" like a ball bearing is hard -- it is only "hard" enough to do it's job and no more. If it is too hard or soft, in the wrong places, the cartridge case will fail, and your first indication of this disaster may be a cloud of gun parts flying in into your face. Such a rapid disassembly of a gun is usually attributed to "an overloaded cartridge," but just as well be from a normally loaded cartridge (developing normal pressures) whose case failed rather catastrophically, and, I might add, rather suddenly, because it had lost it's necessary properties.

How hard is "hard", and how "soft" is "soft"? It is not a question which is easily answered, and I will waffle a bit during the explanation. Normally you will use a cartridge case until it is no longer serviceable because of two main reasons: the case necks will become too thin from repeated sizing and trimming operations, or the necks start splitting. In the first case, you will probably detect the thinning by simply looking at the case necks. Your experience will tell you that they are not "right" and that it is time to get a new batch of brass. In the second case, you will spot the split necks as soon as they are extracted from the gun, or possibly during some inspection step during reloading.

If there are only a couple of splits in a batch of brass, you will begin watching it closely (as the neck splits are not particularly dangerous) and occasionally (and unconsciously) touching your wallet as you contemplate the purchase of a new batch of brass.

The reason for the case neck splitting is that the necks have become to hard and are not able to take the expansion and contraction accompanying the rapid pressure excursion which occurs within the case when it is fired.

The thinning of the case necks occurs when the cases are repeatedly resized. Each time the case is run into the sizing die, it is squeezed back to it's original dimensions. That is, the brass is moved from one dimension to a smaller one. You have heard the old adage, "you can't put two pounds of stuff (original word omitted), into a one pound bag". The same holds true here, also. When the case is squeezed, the "extra" brass has to go somewhere. The somewhere that it goes to, is "out the front". The case gets longer. The "extra" brass comes from the body and shoulder of the case -- eventually, the case will "run out of the extra bras". As the case gets too long, it will have to be trimmed. When the necks get too thin, the cases will have to scrapped.

Another thing that happens during the resizing also contributes to the hardening of case necks. As the brass is squeezed back to it's original dimensions, it is work hardened even more. Each trip through the chamber and the resizing die contributes to the work hardening of the case necks. The usual method of correcting this condition is to anneal the case necks only.

Factors Affecting the Annealing Process

You might assume that brass is brass and that a little heat can't possibly hurt anything. After all, the heat in the chamber is actually hot enough to melt steel, isn't it? Yes, it is. But, the "fire" and attendant heat are of such short duration that the brass (including the chamber and barrel) are virtually unaffected. In order to change the grain structure, time (as well as temperature) is an important component. After too much heat and-or too much time, the brass will be over annealed. It will be too soft, and the entire case will be affected.

The trick is to heat the neck just to the point where the grain structure becomes sufficiently large enough to give the case a springy property, leaving the body changed but little, and the head of the case virtually unchanged.

Brass is an excellent conductor of heat. A flame applied at any point on a case for a short time will cause the rest of the case to heat very quickly. There are several temperatures at which brass is affected. Also, the time the brass remains at a given temperature will have an effect. Brass which has been "work hardened" (sometimes referred to as "cold worked") is unaffected by temperatures up to 482 degrees (F) regardless of the time it is left at this temperature. Remember, water boils at 212 degrees (F), and oil heated in a frying pan easily reaches 500(F) or more degrees. (All temperatures will be in Fahrenheit).

At about 495 degrees (F) some changes in grain structure begins to occur, although the brass remains about as hard as before -- it would take a laboratory analysis to see the changes that take place at this temperature.

If cases are heated to about 600 degrees (F) for one hour, they will be thoroughly annealed -- head and body included. That is, they will be ruined. (For a temperature comparison, pure lead melts at 621.3 degrees (F)).

The critical time and temperature at which the grain structure reforms into something suitable for case necks is 662 degrees (F) for some 15 minutes. A higher temperature, say from 750 to 800 degrees, will do the same job in a few seconds. If brass is allowed to reach temperatures higher than this (regardless of the time), it will be made irretrievably and irrevocably too soft. Brass will begin to glow a faint orange at about 950 degrees (F). Even if the heating is stopped at a couple of hundred degrees below this temperature, the damage has been done -- it will be too soft. From this discussion we can see that there are four considerations concerning time and temperature:

You can see that there are a couple of catch-22's involved in this annealing business. On the one hand, the brass conducts heat quite rapidly, and a fairly high temperature with sufficient time must be attained to do the job. On the other hand, too much time cancels the effect, and we will be left with a case that is too soft and not suitable for anything but scrap. Obviously, there must be a solution; otherwise, not even the cartridge manufacturers could get the job done.

In order to solve the problems of automatic case annealing, we will need to accomplish the following:

Add to the above list the additional frills listed below, and you'll be in hog heaven:

Over Annealing and Under Annealing

When cartridge brass is under annealed, virtually nothing has changed. If your case necks have become work hardened, they will still be work hardened, You will not see any improvement in case life or in accuracy. You will assume (incorrectly) that annealing is a waste of time and in this case, it is.

Over annealing is certainly the worst condition, and can even be dangerous, as pointed out above. Over annealing has two aspects: over annealing of the case neck only, and any annealing of the lower half of the case. There is no particular danger to over annealing the case necks, which is the usual result of standing the brass in water and heating the necks with a torch. All that will happen is that your accuracy will not improve, or it may become worse, and the cases may seem to be a little more sticky during extraction. Case life will be improved because the necks are soft -- too soft. However, you will conclude that annealing is not what it is cracked-up to be, and may even be a waste of time.

Any annealing whatsoever of the cartridge base is over annealing and is dangerous. This area of the brass must retain the properties it had when it left the factory. If it is made the least bit softer, let alone "dead" soft, the stage is set for another shooter's nightmare. At the very least, you may get a whiff of hot gas directed toward your face. At the worst, you can be seriously injured as your gun behaves more like a hand grenade than a firearm.

I once heard a tale of a gentleman who placed his brass on a cookie tray and placed the whole batch in an oven at 650 degrees for over an hour. He wasn't hurt -- at least seriously. His attitude toward annealing is very negative.

Cartridge brass which has been annealed over it's entire length will exhibit signs of excessive pressure even with moderate and reduced loads. Indeed, cases in this condition are subjected to excessive pressures. Any pressure is excessive. Head separation, incipient head separation , stuck or sticky cases, blown primers, swollen cases, swollen case heads, enlarged primer pockets) I mean R-E-A-L-L-Y enlarged) and just about every other sign of excessive pressure imaginable can occur with cases which have been annealed over their entire length.

Testing Cartridge Brass for Hardness / Softness

This is not a definitive test of case hardness; it is more of an illustration than anything else. It requires a pair of small Vice-Grips and a few bottle neck rifle cases in various conditions of use: a factory fresh empty case, two cases that have not split but have been fired many times, and a couple of extra cases to set the jaws of the Vice Grips.

Place one of the used cases base down in a shallow tray containing water up to the lower 1/3rd of the case, and deliberately over-heat the case neck -- bring it to a red heat.

Adjust the Vice-Grips until the jaws barely touch the case neck when they are fully closed. Then, Carefully adjust them to go a few thousands of an inch beyond that point. The jaws should close until you can just barely visibly detect that the case mouth is deformed when the Vice-Grips are closed.

Ordinary pliers are not good for this demonstration because it is too easy to go too far. Vice-Grips, on the other hand, have an adjustable limit to which they can be closed.

Squeeze the neck of the used, but un-annealed case. Note the pressure required. Also note that when the pressure is released, the case neck springs back to it's original shape.

Squeeze the neck of the factory fresh case. Once again note that the case neck springs back to it's original shape, and that it takes slightly less pressure to deform it than the un-annealed case.

Now, squeeze the annealed case. The pressure to deform it is markedly less and when it is released, the case mouth remains deformed -- no spring.

One more test -- stand the annealed case on a metal plate (no water over the base) and heat the upper half to a red heat. Hold the heat for a few seconds and then let it cool. Adjust the Vice-Grips so that they can put considerable squeeze on the head area and crush the annealed case. Now crush one of the normal used cases. The difference is dramatic. Don't test an over annealed case in a gun just to see what happens -- take my word for it, the results can be dangerous to life, limb and eye, not to mention the condition of the gun. Now crush all of the test cases so that they won't get mixed in with some good stuff.

If you are a chemist or a metallurgist and know how to do it, you can make some photomicrographs of sections taken from the various critical points of several cases for reference. Of coarse, you could have been out on the range having a good time instead of fussing with such things, but to each his own.

Selecting the Proper Torches

Almost everyone has a propane torch. They are pretty handy gadgets to have around the house. You will need two of these torches for the BC-1000 Cartridge Case Annealer. Before you go out and buy another torch or two, we need to have a brief discussion on torches. There are torches, and then there are torches.

Some of the older type torches have large burner tips and very crude fuel control systems. Most of the newer torches have very efficient tips and fuel valves that are quite precise. The newer torch tips are small in diameter -- about 1/2 inch -- while most of the older models are in the 5/8ths inch range. There is nothing wrong with the older style torches, and you will find that they can perform quite well. However, if your torch's flame is hard to control, the tip "spits" or "flares", or the tip has become too deformed because of being dropped a few times too often and no longer delivers an even flame, some new torches may be in order.

I happen to favor the BERNZOMATIC TORCH #UL 2317 torch. The tip is efficient, and the valve is not too sensitive. Any equivalent torch will do nicely as long as the tip will fit through the torch holder. This torch will deliver about 4200 BTU.

Preparing The Brass for Annealing

The brass does not require any special preparation before it can be annealed. However, you will need a few polished cases in order to determine the correct temperature. This is important if you want first class results. If your first batch of brass will be pistol brass, don't use plated cases for the testing. Plated cases anneal just fine, but you will not be able to see the color of the brass as it heats up under that shiny coating of nickel.

If you have a polisher, polish the brass before annealing it. If you do not have a polisher, use a little Brasso or other brass polish on a dozen or so cases Polish them about half way down the case by putting a little Brasso on a soft cloth and turning them by hand. If you have a polisher, I don't need to tell you how to polish the brass.

Place one of the polished cartridge cases in a hole near the flame and let it go around the wheel and drop out. This will take a few seconds so be patient. If you are using a rimmed, semi-rimmed or belted case, it will have to be fed from the bottom of the shell wheel and held until the base can be dropped on the feed ramp. Rimless and rebated cases can be fed from the top.

One more thing
I know this goes without saying,
but I'll say it anyway:

Make Sure There Are NO Live Primers
Charged Cases in the Annealer

It should be noted that one of the purposes of the shell wheel is to preheat the case as well as provide a heat sink to keep them from being over heated. All cases should be fed into the shell wheel in the area of the feed ramp. Starting the cases too close to the flame will not give them time to preheat to 212 degrees (F).

On a bottle neck rifle case, the central portion of the flame should be on the case neck, and the outer portions of the flame will "wash" over the shoulder and down the side of the case for a short distance. As the cartridge goes around the wheel, it will turn, causing the entire periphery of the neck to be exposed to the direct flame at one time or another.

With this setup, the neck will actually reach a temperature between 750 and 800 degrees. Remember, it is time and temperature that does the job. We have raised the temperature sufficiently to be able to anneal the case necks in 6 to 8 seconds.

The shoulder will be a bit cooler than the neck, and the body cooler yet. The case head will be below 300 degrees (F), which is well below the critical temperature of 482 degrees (F) at which the first changes in grain structure can occur.

As the case progresses through the flame, watch it closely. You will detect a slight -- barely perceptible -- change in color. As the exits the flame, there should be a light bluish color which develops at the shoulder or a little below it, while the shine remains on the case body. The loss of the shine is a clue that the case got a little too hot. On bottle necked cases you will see that the neck turns to a noticeably deeper "gold" color.

If the shine is gone, the flame can be adjusted or the angles of one or both torches can be changed so the case is not in the flame as long. The height of one of the torches may be changes so that the cases are not in the hottest part of the flame. The color will usually develop as the case is in the last flame.

If the cases do not develop any color at all, then increase the intensity of the flame or adjust the flames so that they play more directly on the case necks, or a combination of the two.

In any case, you are very much more likely to over anneal than to under anneal.

Do not expect that the color will be as dark as it appears on military cases. This darkness of the color on military cases occurs over a period of time, as do the delicate reds and purples around the dark color. If you leave one of your cases sitting out for a few months, it will begin to take on the same appearance that military cases have.

If the cases have lost their shine, they were close to a red heat and and may or may not be too soft. You can gauge the softness to some degree by using the Vice-Grip "test" described above. If the case mouth doesn't spring back after being slightly deformed, the case is trash. Don't waste your time with it.

When you get the faint blue color and the shine remains on the case, you have everything adjusted to perfection. Start stuffing those little brass cases in those little round holes until your done. Make mental note of your set-up, and you'll be able to repeat it in about three minutes the next time you are ready to anneal.

When To Anneal

Ok, now that you know how to anneal, you need to know when to anneal. If you shoot light loads, you can go a long time between annealing. Moderate loads will necessitate annealing a little more often. Normal loads will work harden the case after an amazingly short time. Hot or maximum loads will require annealing very often -- something on the order of once after every two to four firings.

You must also consider that some work hardening occurs when the brass is resized, so the number of firings do not tell the whole story. Another consideration is the chamber size of your gun. If you have a "loose" chamber, you will expand your brass more. It will need to be squeezed more when it is resized, thereby causing it to be worked a little more than "normal".

Another indicator is the opening up of your groups. When you start getting fliers and abnormally large groups, check your case necks along with all of the other variables; it may be time to anneal. If your a chemist or metallurgist, you could acid-etch a case neck and microscopically inspect the grain size.

In the end, it will be your own experience that will determine the frequency of annealing -- just like every other aspect of handloading, there are many variables which are peculiar to your particular problems, methods, techniques, loads, components and guns. You are the final judge.

The next question is, should cases be annealed before reforming? I will let Mr. Earl Naramore answer that Question ("Principles & Practices of Reloading", Small Arms Technical Publishing Company, 1954):

As to whether cases should be annealed prior to re-forming them to some wildcat shape, much depends upon circumstances. Re-forming such cases in an ordinary resizing die puts a crushing force on them and I fear that if this cock-eyed method is used, the annealing would only make the crushing of the cases easier. But if a preliminary break-down die is used, there would probably be an advantage to annealing before the re-forming is done; it depends on the force of the break-down die, the nature of the case, and such.

If cases are annealed for re-forming, the angle of the flame should be set back and it should be carried to a point where the shine on the cases disappears. Following the annealing, the cases should be polished again outside before any sizing is done on them. The loss of shine means that the surface is oxidizing and such a surface will give excessive resistance in a die. It is doubtful if one would have enough of these special cases to justify mechanical washing or polishing and a little rubbing up with Bon-Ami on a wet cloth will do. It will be recalled that washing and water polishing follow every anneal during manufacture of cartridge cases.
[Mr. Narmore devoted quite a bit of space to this subject in his classic book].

If you are forming brass and have definite instructions as to when, where and how much to anneal, by all means, follow the instructions that you have been given. The "instructions" above are more in the form of "guidelines" rather than definite instructions.

The last question is, "Do I anneal before resizing, or after"? Theoretically annealing does not change the diameter of the case neck. In practice, it may or may not, depending on how much the metal is stressed. Therefore, you should always anneal before resizing.

Ken Light

Warning: All technical data mentioned, especially handloading and cartridge case annealing, reflect the limited experience of individuals using specific tools, products, equipment and components under specific conditions and circumstances not necessarily reported in the article or on this web site and over which The Los Angeles Silhouette Club (LASC), this web site or the author has no control. The above has no control over the condition of your firearms or your methods, components, tools, techniques or circumstances and disclaims all and any responsibility for any person using any data mentioned.
Always consult recognized reloading manuals.
